Cold Formed Top Hat Section
Another popular open profile is a steel section named a top hat.
Top hat sections rolled from steel are widely accepted in the market. Industries such as trailer manufacturers use these hat profiles as sections that give support to the tipper trailers while the poultry industry use them in their roofing structure.
Top hat sections have the advantage that one can easily reach the lips to drill holes or should welding have to be done on the profile.
Rolled from various materials including mild steel and pre galvanized steel Tubecon is able to cold form the perfect steel top hat sections, according to our customer's specification. The following link will divert you to our customized open profiles section under our product range: Customized open profiles
Though the dimensions of these profiles varies largely from customer to customer the table below should give you an indication to what is perceived as more standard top hat sections:

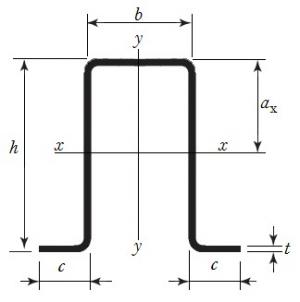

Top Hat Sections Dimension and Properties
swipe for more...
| Designation h*b*c*t | m | A | ax |
|---|---|---|---|
| mm | kg/m | 103mm2 | mm |
| 75x75x20x2.0 | 3.95 | 0.503 | 32.4 |
| 2.5 | 4.88 | 0.621 | 32.4 |
| 3.0 | 5.78 | 0.735 | 32.4 |
| 100x50x20x2.5 | 5.56 | 0.708 | 50 |
| 3.0 | 6.60 | 0.840 | 50 |
| 100x75x20x2.5 | 6.06 | 0.771 | 46.1 |
| 3.0 | 7.19 | 0.915 | 46.0 |
| 3.5 | 8.30 | 1.05 | 46.0 |
| 4.5 | 10.4 | 1.32 | 46.0 |
| 125x50x20x2.5 | 6.55 | 0.833 | 62.5 |
| 3.0 | 7.78 | 0.990 | 62.5 |
| 3.5 | 8.98 | 1.14 | 62.5 |
| 125x75x20x2.5 | 7.04 | 0.896 | 58.2 |
| 3.0 | 8.37 | 1.06 | 58.2 |
| 3.5 | 9.67 | 1.23 | 58.2 |
| 4.5 | 12.2 | 1.55 | 58.1 |
Top Hat Sections Dimension and Properties (Continued)
swipe for more...
| Designation h*b*c*t | I | Ze | r | I | Ze | r |
|---|---|---|---|---|---|---|
| mm | 106mm4 | 103mm3 | mm | 106mm4 | 103mm3 | mm |
| 75x75x20x2.0 | 0.399 | 9.36 | 28.1 | 0.603 | 10.8 | 34.6 |
| 2.5 | 0.483 | 11.3 | 27.9 | 0.733 | 13.3 | 34.3 |
| 3.0 | 0.561 | 13.1 | 27.6 | 0.854 | 15.6 | 34.1 |
| 100x50x25x2.5 | 0.912 | 18.2 | 35.9 | 0.445 | 9.30 | 25.0 |
| 3.0 | 1.06 | 21.2 | 35.6 | 0.517 | 10.9 | 24.8 |
| 100x75x25x2.5 | 1.04 | 19.4 | 36.9 | 0.980 | 16.3 | 35.6 |
| 3.0 | 1.22 | 22.7 | 36.6 | 1.14 | 19.2 | 35.4 |
| 3.5 | 1.39 | 25.8 | 36.3 | 1.30 | 22.0 | 35.1 |
| 4.5 | 1.70 | 31.4 | 35.8 | 1.58 | 27.3 | 34.6 |
| 125x50x25x2.5 | 1.59 | 25.5 | 43.8 | 0.515 | 10.8 | 24.9 |
| 3.0 | 1.87 | 29.9 | 43.4 | 0.599 | 12.7 | 24.6 |
| 3.5 | 2.13 | 34.0 | 43.1 | 0.678 | 14.5 | 24.3 |
| 125x75x25x2.5 | 1.81 | 27.1 | 45.0 | 1.14 | 19.0 | 35.7 |
| 3.0 | 2.13 | 31.8 | 44.7 | 1.34 | 22.5 | 35.5 |
| 3.5 | 2.43 | 36.3 | 44.4 | 1.52 | 25.8 | 35.2 |
| 4.5 | 2.98 | 44.6 | 43.8 | 1.86 | 32.2 | 34.7 |
