Lip Channels

Cold Formed Lipped Channels

Lip channels are predominantly used as a structural component when erecting or constructing buildings and structures. This has also lead to lip channels quite often being referred to as purlins. Though this may be the main use, cold formed steel lip channels are used for other industries such as racking and shelving, trailer manufacturing and many more make use of lipped channels.

Lip channels are cold formed from a number of different steel types. The most popular steel types used in the roll forming of lipped sections include: Hot Rolled Mild Steel, Z275 Pre-Galvanized Steel and 3CR12 Stainless Steel.

Cold formed lip channels holds a number of potential advantages for the constructor or manufacturer. These advantages include the following:

Inline Hole Punching:

Most lip channels can be punched using an inline punch while forming the steel. This allows for quicker and easier construction. Tubecon can punch a variety of round holes in our lip channels, depending on the customer's requirement.

Rolled to Length:

Lip channels can be rolled to the length requested by the customer. This gives the added benefit of saving cost on cutting, scrap material and transport.

Corrosion Resistant:

Lip channels are cold formed from various steel types. Corrosion resistant 3CR12 Stainless Steel and Z275 Pre-Galvanized Material are popular steel types used in the forming of lipped channels.

Variety:

A large variety of cold formed lipped channels are seen as standard in the market. The popular sizes and their attributes are indicated in the table below.

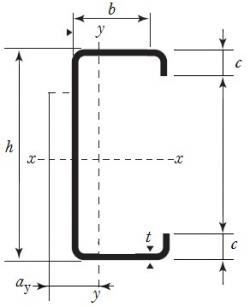

Cold formed lip channel spec

Cold-formed lipped channels - Dimensions and properties

swipe for more...

Designation x-x x-x x-x y-y y-y y-y
h*b*t m A ay I Ze r I Ze r J
mm kg/m 103mm2 mm 106mm4 103mm3 mm 106mm4 103mm3 mm 103mm4
75x50x20x2.0 3.14 0.4 20.8 0.36 9.59 30 0.15 5.12 19.3 0.534
2.5 3.85 0.491 20.8 0.433 11.5 29.7 0.178 6.1 19.1 1.02
3 4.54 0.578 20.7 0.5 13.3 29.4 0.204 6.98 18.8 1.73
100x50x20x2.0 3.53 0.45 18.6 0.705 14.1 39.6 0.167 5.32 19.3 0.6
2.5 4.35 0.554 18.6 0.854 17.1 39.3 0.2 6.35 19 1.15
3 5.13 0.653 18.5 0.991 19.8 39 0.229 7.27 18.7 1.96
100x75x20x2.0 4.32 0.55 29.5 0.945 18.9 41.4 0.439 9.65 28.2 0.734
2.5 5.33 0.679 29.5 1.15 23 41.2 0.53 11.6 27.9 1.41
3 6.3 0.803 29.4 1.34 26.9 40.9 .614 13.5 27.7 0.41
125x50x20x2.0 3.93 0.5 16.8 1.19 19.1 48.8 0.181 5.46 19 0.667
2.5 4.84 0.616 16.8 1.45 23.2 48.5 0.216 6.52 18.7 1.28
3 5.72 0.728 16.8 1.69 27 48.1 0.248 7.47 18.5 2.18
125x65x20x2.0 4.4 0.56 22.9 1.42 22.7 50.3 0.338 8.03 24.6 0.747
2.5 5.42 0.691 22.9 1.73 27.7 50 0.407 9.67 24.3 1.44
3 6.42 0.818 22.8 2.02 32.3 49.7 0.471 11.2 24 2.45
125x75x20x2.0 4.71 0.6 27.2 1.57 25.1 51.1 0.476 9.95 28.2 0.8
2.5 5.82 0.741 27.1 1.92 30.7 50.9 0.575 12 27.9 1.54
3 6.89 0.878 27 2.24 35.9 50.6 0.668 13.9 27.6 2.63
150x50x20x2.0 4.32 0.55 15.4 1.83 24.5 57.7 0.192 5.56 18.7 0.734
2.5 5.33 0.679 15.4 2.23 29.8 57.4 0.23 6.65 18.4 1.41
3 6.3 0.803 15.3 2.61 34.8 57 0.264 7.62 18.1 2.41
150x65x20x2.0 4.79 0.61 21.1 2.16 28.8 59.5 0.36 8.21 24.3 0.814
2.5 5.92 0.754 21.1 2.64 35.2 59.2 0.434 9.88 24 1.57
3 7.01 0.893 21 3.1 41.3 58.9 0.502 11.4 23.7 2.68
3.5 8.08 1.03 21 3.53 47 58.5 0.564 12.8 23.4 4.2
150x75x20x2.0 5.1 0.65 25.2 2.38 31.8 60.5 0.507 10.2 27.9 0.867
2.5 6.31 0.804 25.1 2.91 38.8 60.2 0.614 12.3 27.6 1.67
3 7.48 0.953 25 3.42 45.6 59.9 0.713 14.3 27.3 2.86
3.5 8.63 1.1 25 3.9 52 59.6 0.804 16.1 27 4.49
175x50x20x2.0 4.71 0.6 14.2 2.65 30.3 66.4 0.202 5.64 18.3 0.8
2.5 5.82 0.741 14.2 3.23 36.9 66 0.242 6.75 18.1 1.54
3 6.89 0.878 14.2 3.78 43.2 65.6 0.277 7.74 17.8 2.63
3.5 7.94 1.01 14.1 4.3 49.2 65.2 0.309 8.63 17.5 4.13
175x65x20x2.0 5.18 0.66 19.6 3.1 35.4 68.5 0.379 8.34 23.9 0.88
2.5 6.41 0.816 19.6 3.79 43.3 68.1 0.457 10.1 23.7 1.7
3 7.6 0.968 19.5 4.45 50.8 67.8 0.528 11.6 23.4 2.9
3.5 8.76 1.12 19.5 5.08 8 67.4 0.594 13 23.1 4.56
4.5 11 1.4 19.4 6.24 71.3 66.7 0.707 15.5 22.5 9.46
175x75x20x2.5 6.8 0.866 23.4 4.16 47.6 69.3 0.647 12.5 27.3 1.8
3 8.07 1.03 23.3 4.89 55.9 69 0.751 14.5 27 3.08
3.5 9.31 1.19 23.3 5.59 63.9 68.6 0.848 16.4 26.7 4.84
4.5 11.7 1.49 23.1 6.89 78.7 68 1.02 19.6 26.1 10.1
200x75x20x2.5 7.29 0.929 21.9 5.68 56.8 78.2 0.676 12.7 27 1.93
3 8.66 1.1 21.8 6.69 66.9 77.9 0.785 14.8 26.7 3.31
3.5 10 1.27 21.8 7.65 76.5 77.5 0.886 16.6 26.4 5.2
4.5 12.6 1.6 21.7 9.45 94.5 76.8 1.06 19.9 25.7 10.8
200x100x20x2.5 8.27 1.05 31.5 6.9 69 80.9 1.37 20 36 2.1
3 9.84 1.25 31.4 8.14 81.4 80.6 1.6 23.3 35.7 3.76
3.5 11.4 1.45 31.4 9.34 93.4 80.3 1.82 26.5 35.4 5.92
4.5 14.4 1.83 31.2 11.6 116 79.6 2.21 32.1 34.7 12.3
225x75x20x2.5 7.78 0.991 20.6 7.49 66.6 86.9 0.701 12.9 26.6 2.06
3 9.25 1.18 20.5 8.83 78.4 86.6 0.814 14.9 26.3 3.53
3.5 10.7 1.36 20.5 10.1 89.9 86.2 0.919 16.9 26 5.56
4.5 13.5 1.72 20.4 12.5 111 85.4 1.1 20.2 25.3 11.6
225x100x20x2.5 8.76 1.12 29.8 9.04 80.3 90 1.42 20.3 35.7 2.33
3 10.4 1.33 29.7 10.7 94.9 89.6 1.66 23.7 35.4 3.98
3.5 12.1 1.54 29.7 12.3 109 89.3 1.89 26.8 35.1 6.27
4.5 15.2 1.94 29.5 15.2 136 88.6 2.3 32.6 34.4 13.1
250x65x20x2.5 6.36 0.81 16.2 7.2 57.6 94.3 0.421 8.62 22.8 1.08
3 7.88 1 16.2 8.84 70.7 93.9 0.508 10.4 22.5 2.09
3.5 9.37 1.19 16.1 10.4 83.3 93.4 0.588 12 22.2 3.58
250x75x20x2.5 8.27 1.05 19.4 9.61 76.9 95.5 0.723 13 26.2 2.19
3 9.84 1.25 19.4 11.3 90.7 95.1 0.839 15.1 25.9 3.76
3.5 11.4 1.45 19.4 13 104 94.7 0.948 17 25.6 5.92
4.5 14.4 1.83 19.3 16.1 29 93.9 1.14 20.4 24.9 12.3
250x100x20x2.5 9.25 1.18 28.3 11.5 92.2 98.9 1.47 20.5 35.5 2.45
3 11 1.4 28.2 13.6 109 98.5 1.72 24 35 4.21
3.5 12.7 1.62 28.2 15.6 25 98.2 1.95 27.2 34.7 6.63
4.5 16.1 2.05 28 19.5 156 97.4 2.38 33 34 13.9
275x65x20x2.0 6.75 0.86 15.3 9.06 65.9 103 0.432 8.69 22.4 1.15
2.5 8.37 1.07 15.3 11.1 80.9 102 0.521 10.5 22.1 2.22
3 9.95 1.27 15.3 13.1 95.4 102 0.603 12.1 21.8 3.8
275x75x20x2.5 8.76 1.12 18.4 12.1 87.7 104 0.741 13.1 25.8 2.33
3 10.4 1.33 18.4 14.2 103 104 0.861 15.2 25.5 3.98
3.5 12.1 1.54 18.4 16.3 119 103 0.971 17.1 25.1 .27
275x100x20x2.5 9.74 1.24 26.9 14.4 105 108 1.51 20.7 34.9 2.59
3 11.6 1.48 26.9 17 124 107 1.77 24.2 34.6 4.43
3.5 13.4 1.71 26.8 19.6 142 107 2.01 27.5 34.3 6.99
4.5 17 2.17 26.7 24.4 177 106 2.45 33.4 33.6 14.6
300x65x20x2.5 8.86 1.13 14.5 13.7 91.6 110 0.53 10.5 21.7 2.35
3 10.5 1.34 14.5 16.2 108 110 0.62 12.2 21.4 4.03
3.5 12.2 1.55 14.5 18.6 124 109 0.69 13.7 21.1 6.34
300x75x20x2.5 9.25 1.18 17.5 14.9 99 112 0.76 13.2 25.4 2.46
3 11 1.4 17.5 17.5 117 112 0.88 15.3 25.1 4.21
3.5 12.7 1.62 17.5 20.1 134 111 0.99 17.3 24.7 6.63
4.5 16.1 2.05 17.4 25.1 167 110 1.19 20.7 24.1 13.9
300x100x20x2.5 10.2 1.3 25.7 17.6 117 116 1.55 20.9 34.5 2.72
3 12.2 1.55 25.6 20.9 139 116 1.82 24.4 34.2 4.66
3.5 14.1 1.8 25.6 24 160 115 2.06 27.7 33.9 7.35
4.5 17.9 2.28 25.5 30 200 115 2.51 33.7 33.2 15.4
;
