Size Ranges

Round, Square and Rectangular Steel Tubes

We can do it!

Tubecon manufactures and supplies various steel tubes and open profiles into the South African market. Popular round, square and rectangular steel tubes are rolled and stocked at our branches in Cape Town and Pretoria. Standard stock lengths on the majority of steel tubes are 6 meter lengths. Some application specific steel sections are stocked in different lengths. These include Conveyor Tubes (7.2m-24 m), D-Sections (6.4m) and electrical conduit (4m). Standard sized lip channels are stocked in 6 meter and 9.145 meter lengths.

Though these are an indication to our standard stock lengths; hot- and cold rolled round, square and rectangle steel tubes as well as lip channels and open profiles can be rolled to size or cut-to-length for the customer. The cut to length and roll to size services prevents our customers from having scrap and increases their productivity.

The green fields in the tables indicate the popular sizes of steel tubes that Tubecon manufactures. The tables are not an indication of our technical limits so please enquire with our sales staff should your desired size not be listed or not fall on a green field.

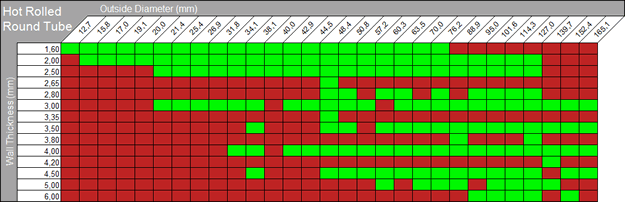

Hot Rolled Round Tube

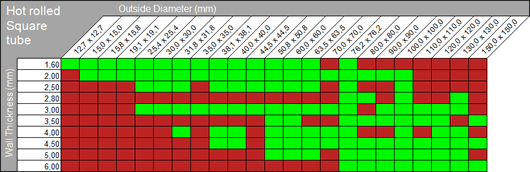

Hot Rolled Square Tube

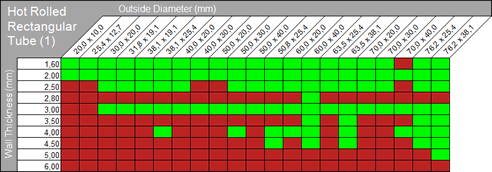

Hot Rolled Rectangular Tube

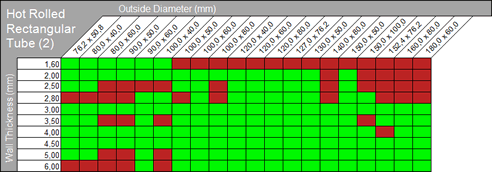

Hot Rolled Rectangular Tube 2

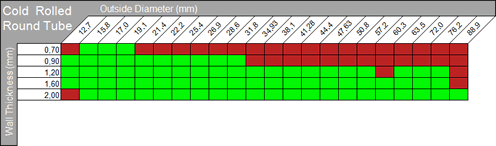

Cold Rolled Round Tube

Cold Rolled Square Tube

Cold Rolled Rectangular Tube

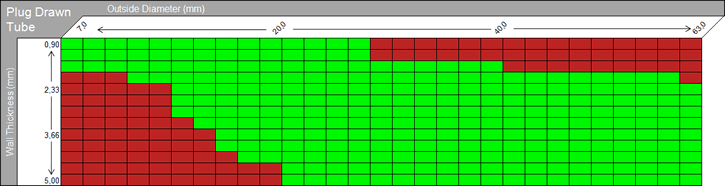

Plug Drawn Tube
